GUSHI Intelligent is deeply involved in the robotics industry, providing suitable product solutions for collaborative robots, industrial articulated robots, commercial cleaning robots, AGV, AMR, unmanned forklifts, special robots and other applications
ROBOT
Robots
Unmanned driving

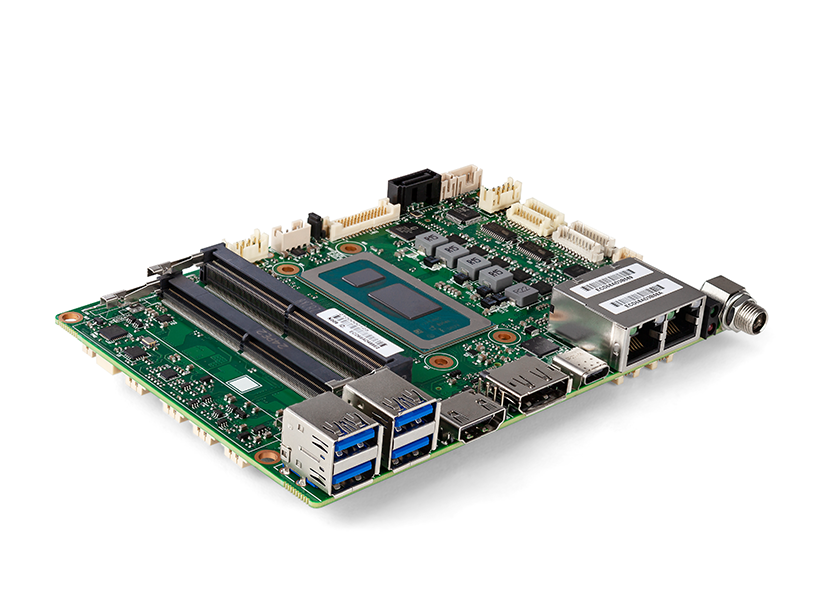

CPU: Intel® J1900/J6412/i3-1115G4E/i3-1215UE
Memory: SO-DIMM memory slot
Graphics: 12th generation CPU, integrated Intel UHD for Gen12 (i3) or Intel Iris® Xe Graphics (i5&i7)
Multi-display: Supported
Audio: Supported
Digital I/O: Supported
TPM: TPM2.0
Watch Dog: 255-level programmable
Operating temperature: -20℃～65℃
Dimensions: 146mm(W)×102mm(D)
CPU: 11th Gen Intel® Celeron® 6305E / Core™ i3-1115G4E / i5-1145G7E / i7-1185G7E
Memory: SO-DIMM memory slot DDR4, up to 32GB
Graphics: 12th Gen CPU, integrated Intel UHD for Gen12 (i3) or Intel Iris® Xe Graphics (i5&i7)
Multi-display: support dual display
Ethernet: 4 Gigabit RJ45
Audio: support
Digital I/O: 8-bit
Serial port: 2 optional RS232/422/485
Power supply: DC+12V~36V
Operating temperature: -20℃～65℃
Dimensions: 200mm(L)×140mm(W)×40mm(H)
Collaborative robot controller motherboard, industrial robot controller motherboard, 3D vision guidance controller industrial computer
Industry application keywords: robot controller, 3D vision guidance, defect detection
Low-speed unmanned driving, AMR, AGV, handling, distribution, warehousing, cleaning robot controller solutions
System platform: X86, ARM, NVIDIA (accept customization)
CPU: Intel/ARM/NVIDIA
Features: Anti-vibration, accept waterproof customization requirements
Multiple network ports: 2~8 Gigabit Ethernet, optional 2 10G
Wireless: 4G/5G/WIFI
Power supply: 9~36V
Operating temperature: -20°~+70°
Connect laser SLAM, camera, binocular camera visual perception sensor warning system components. Robot navigation and positioning are two important technologies that enable robots to achieve autonomous navigation and mapping in the location environment.

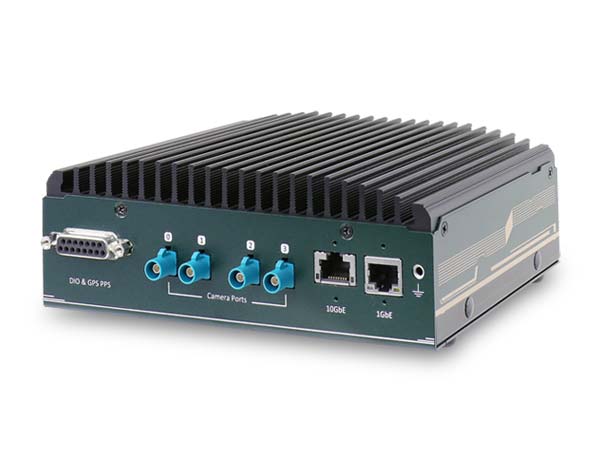

Using Jetson Orin™ NX or Xavier™ NX computing platform, it supports 4 GMSL2 cameras to acquire images, making it ideal for use as a sensor hub or perception unit for ADAS, remote control, autonomous robots and autonomous vehicles
