Edge computing AI·Iot·IoT gateway·GPU edge computing
Industrial IoT gateway, edge computing gateway, suitable for monitoring and intelligent diagnosis in industries such as petrochemical, wind power generation, photovoltaic power generation, etc.
Intel® Elkhart Lake Atom® x6211E dual-core processor
49 x 89 x 112mm ultra-compact chassis design
Fanless operation in a wide temperature range of -25℃ to 70℃
2 Gigabit Ethernet ports
2 USB 3.1 Gen1 ports and 2 USB 2.0
Supports 5G/ 4G 3042/ 3052 modules
Can connect WiFi 5/ WiFi 6 modules
1 RS-232/ 422/ 485 serial port module and 3 RS-232 serial ports

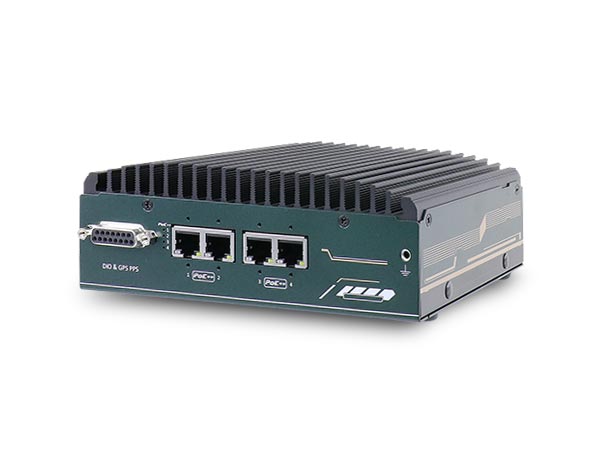

Edge computing artificial intelligence platform, intelligent video analysis platform, widely used in video analysis of roadsides, tracks, construction sites, mines, factories, etc.
Supports NVIDIA® Jetson Orin™ NX/ Xavier™ system module, provides JetPack 5.1.1
Rugged computing platform, fanless operation from -25℃ to 70℃
4 IEEE 802.3bt PoE++ Gigabit Ethernet ports with locking screws
2 mini-PCIe slots for WIFI/ GNSS/ NVMe/ CAN modules
1 M.2 3042/ 3052 B key slot for 4G/ 5G mobile communication
1 hardware-configurable RS232/ RS422/ RS485 port
8V~35V wide range DC input, built-in ignition signal power control
Compliant with MIL-STD-810H and EN 50155 EMC certification
