VEIC-9100
VEIC-9100
VEIC-9100
- Supports Intel® 12th/ 13th Gen Core™ 24 cores/ 32 threads 35W/ 65W LGA1700 CPU
- 4 or 8 802.3at PoE+ ports via M12 or RJ45 connectors
- 1 USB 3.2 Gen2 x2 type-C port and 8 USB 3.2/ 2.0 type-A ports
- Onboard isolated CAN bus for in-vehicle communication
- 4-channel isolated DI and 4-channel isolated DO
- M.2 Gen4 x4 NVMe SSD slot
- 8V~48V wide range DC input, built-in ignition signal power control
- 2 SATA ports, 1 of which provides hot-swappable hard disk bay, supports RAID 0/1
- E-Mark certified and compliant with EN 50155 EMC
Product Introduction
VEIC-9100 is a new rugged vehicle-mounted industrial computer equipped with Intel® 12th/ 13th generation Core™ processors. Combined with the increase in DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read and write, the entire system can bring users 1.8 times the performance improvement compared to the 10th or 11th generation platform.
VEIC-9100 supports 2.5G and Gigabit Ethernet ports, provides 4 or 8 802.3at PoE+ interfaces, and can provide 25W power for connected devices (such as IP cameras). VEIC-9100 has an M12 x-coded connector and I/O interface locking mechanism to provide protection for Gigabit Ethernet ports, USB 3.2 Gen1, and USB 3.2 Gen2 to ensure interface connection stability in vibration/shock environments. Wireless interconnection is particularly important in modern in-vehicle applications. Nuvo-9100VTC can provide 2 M.2 slots and 3 mini-PCIe slots at the same time, so that users can carry out in-vehicle wireless communication of 4G/5G, WiFi, GPS and CAN modules.
VEIC-9100 also provides 1 isolated CAN bus for in-vehicle communication, isolated DIO for sensor/actuator control, 8V~48V wide range DC input and ignition signal power control, and is E-Mark certified. It is an ideal solution with excellent stability and suitable for various in-vehicle applications.
| System Kernel | |
| Controller | Supports Intel® 13th Generation Alder Lake Core™ Processors (LGA1700 socket, 35W/ 65W TDP) |
| – Intel® Core™ i9-13900E/ i9-13900TE | |
| – Intel® Core™ i7-13700E/ i7-13700TE | |
| – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE | |
| – Intel® Core™ i3-13100E/ i3-13100TE | |
| Supports Intel® 12th Generation Alder Lake Core™ Processors (LGA1700 socket, 35W/ 65W TDP) | |
| – Intel® Core™ i9-12900E/ i9-12900TE | |
| – Intel® Core™ i7-12700E/ i7-12700TE | |
| – Intel® Core™ i5-12500E/ i5-12500TE | |
| – Intel® Core™ i3-12100E/ i3-12100TE | |
| – Intel® Pentium® G7400E/ G7400TE | |
| – Intel® Celeron® G6900E/ G6900TE | |
| Chipset | Intel® Q670E Platform Controller Hub |
| image | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | 2 SODIMM memory slots, supporting up to 64GB DDR5 4800 SDRAM |
| AMT | Support Intel vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |

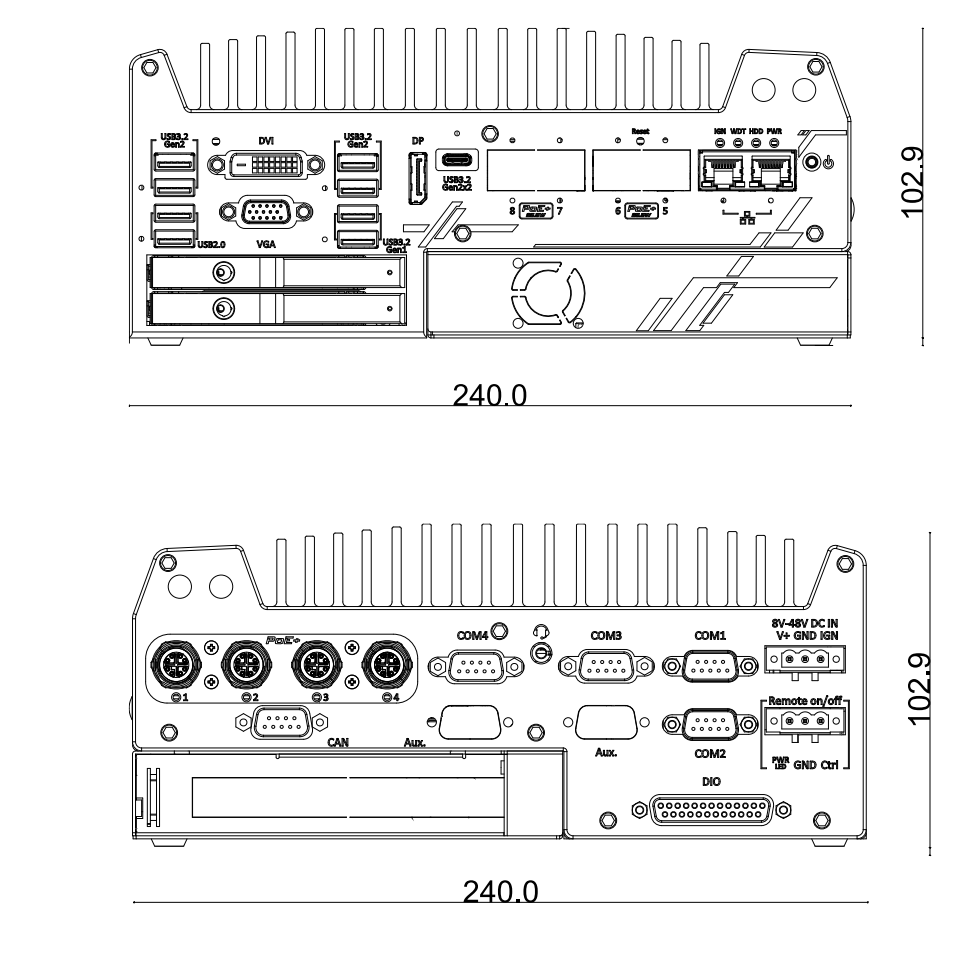

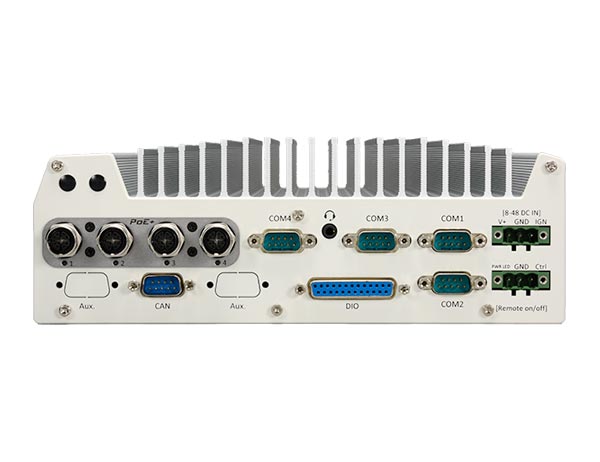

| Panel interface | |
| Ethernet | Comes with 1 2.5G Ethernet port using I225-IT chip, 1 Gigabit Ethernet port using I219-LM chip, with locking screws |
| PoE+ | Configuration 1 (VEIC-9100): 4 x M12 X-coded connectors IEEE 802.3at PoE+ Gigabit Ethernet ports (with Intel® I210) |
| Configuration 2 (VEIC-9104): 4 RJ45 connectors IEEE 802.3at PoE+ Gigabit Ethernet ports (with Intel® I210) | |
| Configuration 3 (VEIC-9108): 4 RJ45 IEEE 802.3at PoE+ Gigabit Ethernet ports (using Intel® I210) and 4 RJ45 PoE+ 2.5G Ethernet ports (using Intel® I225-IT), a total of 8 PoE Ethernet ports | |
| USB 3.2 | 1 USB 3.2 Gen2 x2 (20 Gbps) port, connected via type-C connector with locking screws |
| 4 USB 3.2 Gen2 x1 (10 Gbps) ports via type-A connectors | |
| 2 USB 3.2 Gen1 x1 (5 Gbps) ports, connected via type-A connectors | |
| USB 2.0 | 2 USB 2.0 ports |
| CAN | 1 isolated CAN 2.0 interface |
| Display Interface | 1 VGA port, supports up to 1920 x 1200 resolution |
| DVI-D port, supports up to 1920 x 1200 resolution | |
| 1 DisplayPort interface, supports up to 4096 x 2304 resolution | |
| Display Interface | 1 VGA port, supporting resolution 1920×1200 |
| 1 DVI-D port, supporting resolution 1920×1200 | |
| 1 DisplayPort interface, supporting resolution 4096×2304 | |
| Serial Port | 2 software programmable RS-232/422/485 serial ports (COM1/COM2) |
| 2 RS-232 serial ports (COM3/COM4) | |
| Isolated DIO | 4-channel isolated DI and 4-channel isolated DO |
| Audio Interface | 1-way 3.5 mm microphone input and speaker output |
| Storage Interface | |
| SATA Hard Drive | 1 hot-swappable 2.5” drive bay (7mm HDD/SSD) and 1 built-in 2.5” SATA port |
| M.2 | 1 M.2 2280 M key slot (PCIe Gen4 x4) for installing NVMe SSD |
| Expansion Bus | |
| Mini PCIe | 1 full-length mini PCIe slot |
| 2 full-length mini PCIe slots (USB signal only), with built-in SIM card slot | |
| M.2 | 1 M.2 2242/ 3052 B key slot, providing SIM card slot for M.2 5G/ 4G module |
| M.2 2242/3052 B key slot, providing SIM card slot for M.2 4G module | |
| power supply | |
| DC input | 1 3-core pluggable terminal block, providing 8~48V DC input (IGN/GND/V+) |
| Ignition signal power control | Built-in ignition signal power control |
| Remote control and LED output | 1 3-pin pluggable terminal block, providing remote control and PWR LED output |
| Mechanical Specifications | |

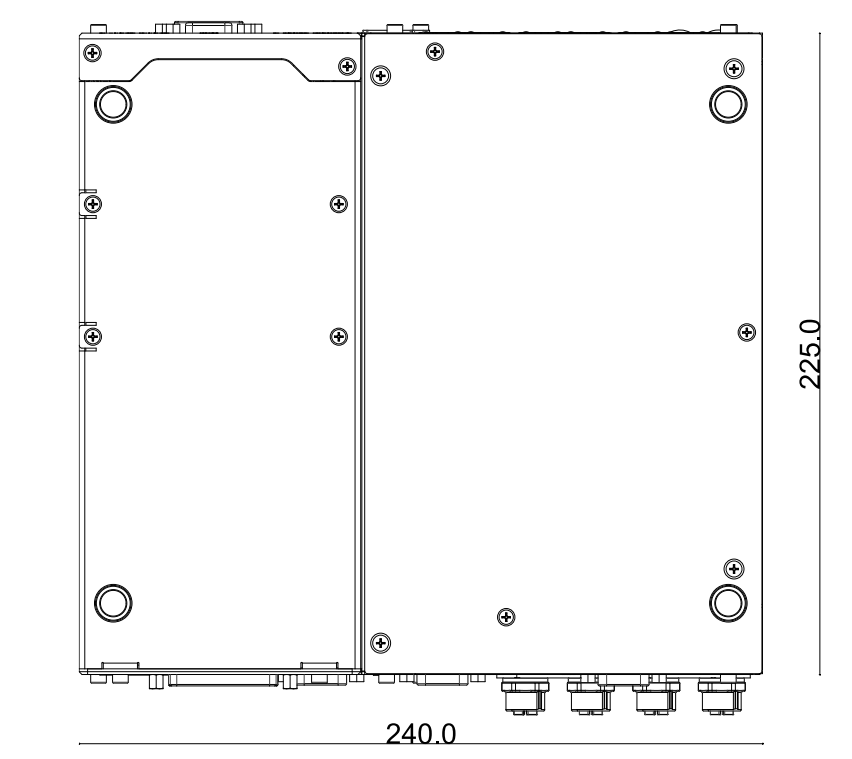

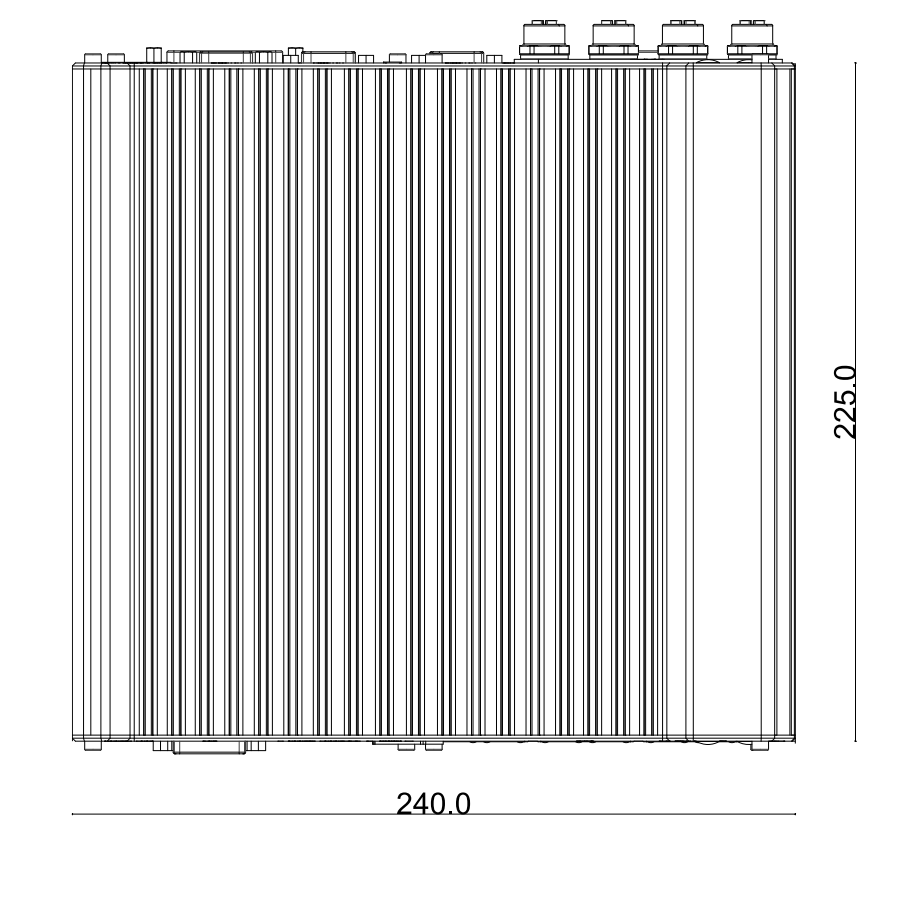

| size | 240mm(W) x 225mm(D) x 84mm(H) |
| weight | 3.7 Kg |

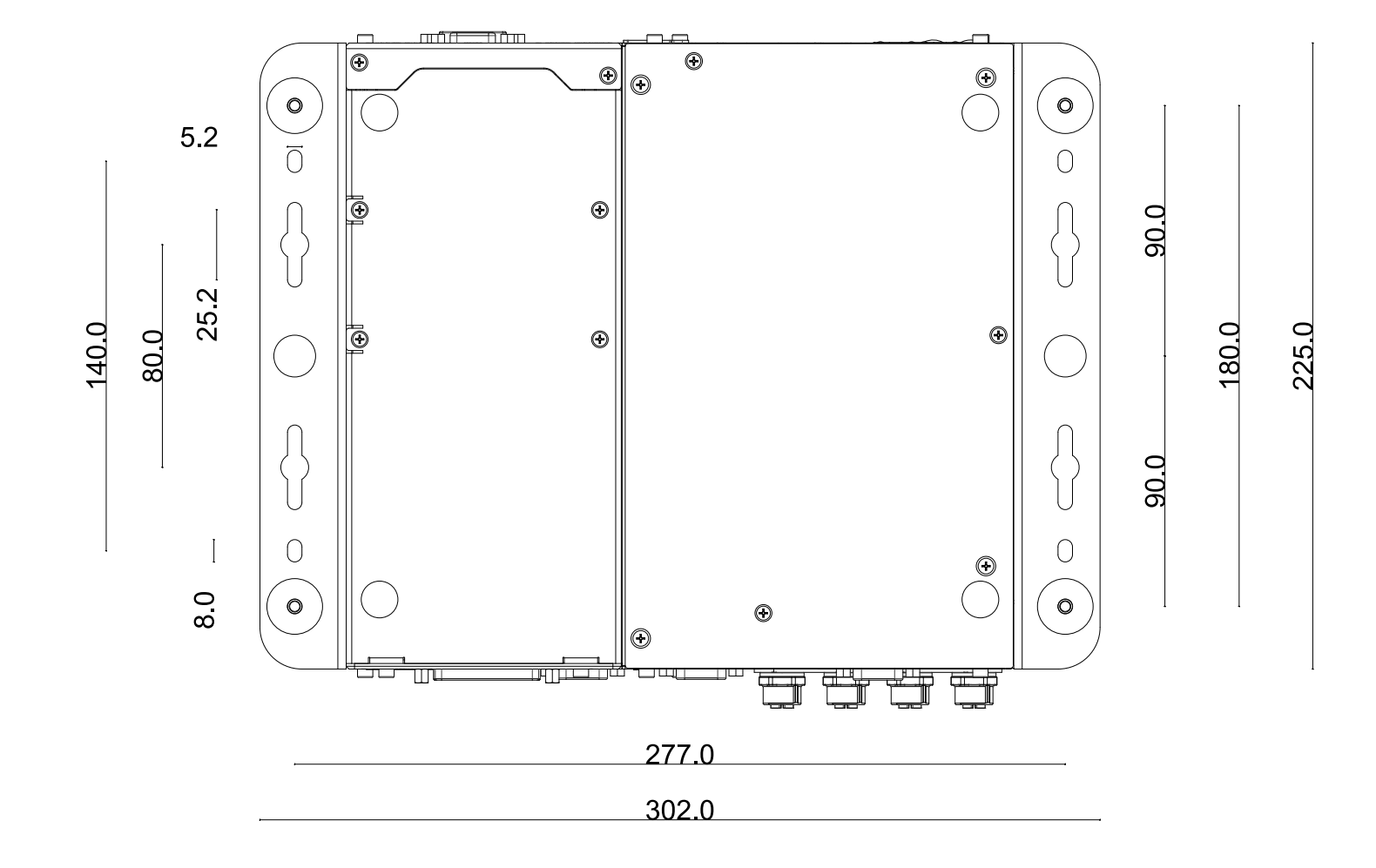

| Installation | Wall mount with shock mount |
| Environmental indicators | |
| Operating temperature | Using 35W CPU |
| -40℃ ~ 70℃ [1] (1 memory module installed) | |
| -40℃ ~ 60℃ [2] [3] (2 memory modules installed) | |
| Using 65W CPU | |
| -40℃ ~ 50℃ [2] [3] (Configured at 65W TDP with 2 storage slots) | |
| Storage temperature | -40°C ~ 85°C |
| humidity | 10%~90%, no condensation |
| vibration | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted |
| Shock | EN 50155:2017/ IEC 61373, Category I, Class B – Body mounted |
| EMC | E-Mark, EN 50121 (EN 50155 EMC) |
| CE/FCC Class A, refer to EN 55032 & EN 55035 | |
| VEIC-9100 | Intel® 12th/ 13th Generation Core™ In-Vehicle Computing Platform, Supports 4 M12 PoE+ Ports, DIO, CAN Bus and RAID |
| VEIC-9104 | Intel® 12th/ 13th Generation Core™ In-Vehicle Computing Platform, Supports 4 RJ45 PoE+ Ports, DIO, CAN Bus and RAID |
| VEIC-9108 | Intel® 12th/ 13th Generation Core™ In-Vehicle Computing Platform, Supports 8 RJ45 PoE+ Ports, DIO, CAN Bus and RAID |
