Ceti-NX156U3/Ceti-NX154PoE

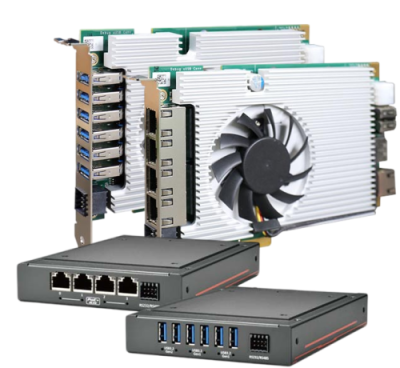

Ceti-NX156U3/Ceti-NX154PoE expansion image acquisition card, GPU computing card, independent computing unit of industrial computer. Equipped with NVIDIA’s Jetson Orin NX system module, including 1024 CUDA cores, 32 tensor cores (Tensor Core)
Ceti-NX156U3/Ceti-NX154PoE
Computing expansion acquisition card independent of the system host to achieve dual systems NVIDIA® Jetson Orin™ NX system module, pre-installed JetPack 5.1 Separate power input Optional 8G/16G memory Expandable M.2 NVMe storage
Single-slot half-length PCIe card form factor
4 PoE+ 2.5G Ethernet ports, providing a total of 50W of power. Up to 4 4K@30FPS video streams can be decoded simultaneously (Ceti-NX154PoE) 6 USB 3.2 ports, each port can be set to 900mA and 1500mA current limit, and each port can be independently turned on/off by software programming (Ceti-NX156U3)
100 TOPS AI inference performance, up to 4 4K@30FPS video streams can be decoded simultaneously
1 isolated RS-485 and 1 RS-232
x1 Gen2 PCI Express interface, providing 2.5Gb/s total bandwidth
-25℃ to 60℃ wide operating temperature range (with airflow)
Ceti-NX156U3/Ceti-NX154PoE expansion image acquisition card, GPU computing card, independent computing unit of industrial computer. Equipped with NVIDIA’s Jetson Orin NX system module, including 1024 CUDA cores, 32 tensor cores (Tensor Core), and 2 NVDLA® engines, INT8 can reach 100 TOPS artificial intelligence computing power. It can be expanded on X86 industrial computers, compatible with Windows and Linux operating systems, realize dual systems, share deep learning-based image processing work for the host, image acquisition, preprocessing and reasoning can all be performed on the expansion card, greatly reducing the host resource usage. It can be applied in scenarios such as package inspection, item classification, surface defect detection, assembly verification, robot navigation, object detection, classification, tracking and face recognition.
| System Kernel | |
| Controller | NVIDIA® Jetson Orin™ NX System-on-Module (SOM) with NVIDIA® Ampere GPU and ARM Cortex CPU |
| Memory | System on Module (SOM) 8GB/ 16GB LPDDR5 @ 3200 MHz |
| Storage Interface | |
| M.2 NVMe | 1 M.2 2242 M key slot (PCIe Gen4 x2) for installing NVMe SSD |
| Deploy I/O interface | |
| Bus interface | x1, Gen2 PCI Express |
| USB | 2 USB 3.2 Gen2 (10 Gbps) ports (Ceti-NX156U3) |
| 4 USB 3.2 Gen1 (5 Gbps) ports (Ceti-NX156U3) | |
| PoE | 4 IEEE 802.3at PoE+ ports, each port can provide up to 25.5W of power, and 4 ports can provide up to 50W of power in total (Ceti-NX154PoE) |
| Ethernet | 4 2.5GBASE-T Ethernet ports (Ceti-NX154PoE) |
| Serial Port | 1 RS-232 port and 1 isolated RS-485 port |
| Developing I/O interfaces | |
| Ethernet port | 1 Gigabit Ethernet port |
| USB | 2 USB 2.0 ports |
| 1 x micro USB (OTG) | |
| Display Interface | 1 DisplayPort, supports 3840x 2160 (refresh rate 60Hz) |
| DC input | 12V DC input (for independent development, or when total power consumption is greater than 66W) |
| Mechanical specifications | |
| size | 167.7mm (W) x 111mm (H) (Ceti-NX156U3/Ceti-NX154PoE) |
| weight | 0.4kg |
| size | 116mm (W) x 171mm (D) x 27mm (H) (without wall mount) (CBOX series) |
| weight | 1.0 kg(CBOX series) |
| Environmental indicators | |
| Operating temperature | -25℃ ~ 60℃ with airflow (20W TDP mode)* |
| Storage temperature | -40℃ ~ 85℃ |
| humidity | 10% ~ 90%, no condensation |
| EMC | CE Class A, refer to EN 55032/55035 |
| FCC Class A, refer to FCC Part 15, Subpart B | |
Ceti-NX156-JON8
100 TOPS smart image acquisition card, providing 6 USB 3.2 interfaces, equipped with Jetson Orin NX (8GB)
Ceti-NX156-JON16
100 TOPS smart image acquisition card, providing 6 USB 3.2 interfaces, equipped with Jetson Orin NX (16GB)
Ceti-NX154-JON8
100 TOPS smart image acquisition card, providing 4 PoE+ interfaces, equipped with Jetson Orin NX (8GB)
Ceti-NX154-JON16
100 TOPS smart image acquisition card, providing 4 PoE+ interfaces, equipped with Jetson Orin NX (16GB)
CBOX-NX156-JON8
100 TOPS smart image acquisition card, providing 6 USB 3.2 interfaces, equipped with Jetson Orin NX (8GB)128GB NVMe and pre-installed system image. Sheet metal case
CBOX-NX156-JON16
100 TOPS smart image acquisition card, providing 6 USB 3.2 interfaces, equipped with Jetson Orin NX (16GB) 128GB NVMe and pre-installed system image. Sheet metal case
CBOX-NX154-JON8
100 TOPS smart image acquisition card, providing 4 PoE+ interfaces, equipped with Jetson Orin NX (8GB) 128GB NVMe and pre-installed system image. Sheet metal case
CBOX-NX154-JON16
100 TOPS smart image acquisition card, providing 4 PoE+ interfaces, equipped with Jetson Orin NX (16GB) 128GB NVMe and pre-installed system image. Sheet metal case
Manual
| Date | Description | Version | Download File |
|---|---|---|---|
| 2020/07/21 | VA2 |
