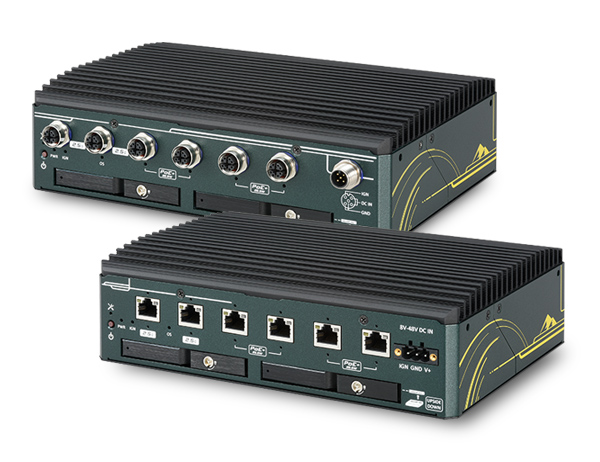

Ceti-220S

The Ceti-220S series is a one-stop AI NVR real-time inference and video transcoding solution, equipped with the NVIDIA® Jetson AGX Orin™ system module. The Ceti-220S series has a fanless design and wide temperature operation capability, making it ideal for deployment in mobile/non-mobile applications.
The Ceti-220S series is equipped with the NVIDIA® Jetson AGX Orin™ 32GB/ 64GB system module (SOM), which includes: 1 Ampere GPU with computing power up to 2048 CUDA cores, 64 Tensor Cores, 2 NVDLA 2.0 Engines, providing a total of 275 (with sparsity) INT8 TOPS AI inference computing power and video decoding capabilities, and can decode up to 22 1080p video streams simultaneously.
The Ceti-220S series provides 4 802.3at PoE+ interfaces, sharing 1G Ethernet bandwidth; each interface can provide up to 25.5W of power for IP cameras. For security monitoring applications that require more IP camera connections or higher bandwidth connections to backend systems, the NRU-220S series also provides two additional 2.5GbE interfaces. The 64GB eMMC and 1 M.2 2280 NVMe slots on the NRU-220S series Orin module are used for fast SSD read/write, and there are also 2 front-panel pluggable 2.5″ SSD hard disk bays for expanded storage capacity. The NRU-220S is also equipped with 2 mini-PCIe slots for installing CAN/ COM/ WiFi modules and 1 M.2 B key slot for installing 4G LTE/ 5G NR mobile communication modules.
In addition to the various connection ports mentioned above, the system also supports various NVIDIA® Artificial intelligence tools and advanced deep learning frameworks. NRU-220S brings real-time video reasoning capabilities to edge security monitoring, predictive maintenance, and intelligent transportation systems (ITS) applications. Not only that, NRU-220S also has a unique shock-absorbing frame design, ignition signal power control function, and 8V~48V wide-range DC input, which is very suitable for vehicle deployment. It is worth mentioning that the NRU-220S series also has another model NRU-222S, equipped with an M12 interface, which is very suitable for applications that require strong connections to withstand vibration and impact environments, such as smart agriculture, construction industry, and mining machinery.
The Ceti-220S series is a compact fanless wide-temperature edge computing platform designed for edge artificial intelligence computing power requirements.
