WuKong-9000
rugged embedded computing platform based on the Intel® 12th/ 13th generation Alder Lake platform

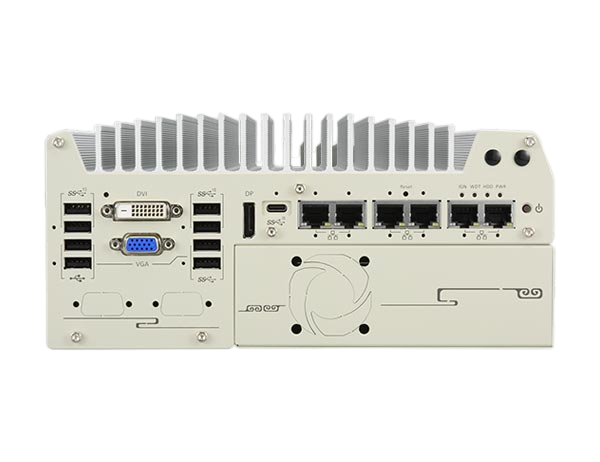

Wukong-9000
- Supports Intel® 12th/13th generation Alder Lake Core™ 24 core/32 thread 35W/65W processor
- Supports PCI/PCIe expansion card card expansion box
- Rugged computing platform, supports -25℃ to 70℃ wide temperature fanless operation
- Supports up to 5 2.5G Ethernet ports and 1 Gigabit Ethernet port, optional PoE+, supports 9.5KB jumbo frame
- 1 USB 3.2 Gen2x2 type-C port and 8 USB 3.2/2.0 type-A ports
- Supports M.2 Gen4x4 NVMe and 2 SATA ports
- Supports MezIO™ expansion module for easy function expansion
- Supports VGA/DVI/DP triple independent display, supports 4K2K resolution
The WuKong-9000 series is a new rugged embedded computing platform based on the Intel® 12th/ 13th generation Alder Lake platform. Thanks to the advanced Intel 7 process, the new Core™ desktop processor can support up to 24 cores and 32 threads, greatly improving computer performance. Combined with the increase in DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read and write, the entire system can bring users a 2x performance improvement compared to the 10th or 11th generation platform.
The WuKong-9000 series adopts an advanced card expansion box design, which can achieve various functional expansions by installing PCIe and PCI expansion cards. The WuKong-9000 series has three card expansion box options, WuKong-9000E provides 1 x16 Gen3 PCIe slot, WuKong-9000DE provides 2 x16 PCIe slots, and Nuvo-9000P provides a single PCI slot. For users who need more flexible storage space, WuKong-9000LP provides 1 2.5” hard disk bay (instead of 1 card expansion box) for installing 1 hot-swappable 2.5” hard disk/solid state drive.
The I/O functions of the WuKong-9000 series have also been comprehensively improved. In addition to 6 2.5G/Gigabit Ethernet ports supporting PoE+ PSE function, the WuKong-9000 series also supports 1 USB 3.2 Gen2x2 type-C port, providing 20 Gbps bandwidth for data exchange with external devices, and another 6 USB3.2 type-A ports for connecting USB3 cameras.
The WuKong-9000 series has also upgraded the M.2 Gen4x4 slot to support the new NVMe SSD, increasing the disk read and write speed to 7000 MB/s. At the same time, users can also expand functions through card expansion boxes that support PCIe/ PCI expansion cards, MezIO expansion interfaces, and internal mini-PCIe/ M.2 interfaces.
The WuKong-9000 series has a field-proven thermal design, significant CPU and I/O port upgrades, and a variety of expansion options. It is a rugged, high-computing, multi-functional computing platform that meets your various application needs.
| Kernel | |
| CPU | Supports Intel® 13th Generation Alder Lake Core™ Processors[1] (LGA1700 socket, 35W/ 65W TDP) |
| – Intel® Core™ i9-13900E/ i9-13900TE | |
| – Intel® Core™ i7-13700E/ i7-13700TE | |
| – Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE | |
| – Intel® Core™ i3-13100E/ i3-13100TE supports Intel® 12th Generation Alder Lake Core™ processors (LGA1700 socket, 35W/ 65W TDP) | |
| – Intel® Core™ i9-12900E/ i9-12900TE | |
| – Intel® Core™ i7-12700E/ i7-12700TE | |
| – Intel® Core™ i5-12500E/ i5-12500TE | |
| – Intel® Core™ i3-12100E/ i3-12100TE | |
| – Intel® Pentium® G7400E/ G7400TE | |
| – Intel® Celeron® G6900E/ G6900TE | |
| Chipset | Intel® Q670E Platform Controller Hub |
| Integrated Graphics | Integrated Intel® UHD Graphics 770 (32EU)/ 730 (2EU) |
| System Memory | Two SODIMM memory slots, supporting up to 64GB DDR5 4800 SDRAM |
| AMT | Support Intel vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| BIOS | AMI |
| Ethernet[2] | 1 2.5G Ethernet port using I225-IT chip, 1 Gigabit Ethernet port using I219-LM chip, with locking screws (Wukong-9002E/P/DE/LP) |
| 5 2.5G Ethernet ports using I225-IT chip, 1 Gigabit Ethernet port using I219-LM chip, with locking screws (Wukong-9006E/P/DE/LP) | |
| POE+ | Network ports 3~6 (2.5G Ethernet ports) can be equipped with IEEE 802.3at PoE+ PSE power supply with a maximum total power of 100W |
| USB 3.2 | 1 USB 3.2 Gen2x2 (20 Gbps) port, connected via type-C connector with locking screws |
| 4 USB 3.2 Gen2x1 (10 Gbps) ports connected via type-A connectors | |
| 2 USB 3.2 Gen1x1 (5 Gbps) ports via type-A connectors | |
| USB 2.0 | 2 USB 2.0 ports |
| Display interface (integrated graphics card) | 1 VGA port, maximum resolution 1920 x 1200 |
| 1 DVI-D port, supports a maximum resolution of 1920 x 1200 | |
| DisplayPort interface, supporting a maximum resolution of 4096 x 2304 | |
| Serial Port | 2 software programmable RS-232/ 422/ 485 ports (COM1/ COM2) |
| 2 RS-232 ports (COM3/COM4) | |
| Audio Interface | 1 microphone input and speaker output (3.5mm jack) |
| Storage Interface | |
| SATA Hard Drive | 2 internal SATA ports, can connect to 2.5” hard disk/SSD, support RAID 0/1 (Wukong-9000E/ 9000P/ 9000DE) |
| 1 hot-swappable 2.5” hard drive bay (can install 7mm hard drive/SSD), and 1 internal 2.5” SATA port (Nuvo-9000LP) | |
| M.2 NVMe | 1 M.2 2280 M key NVMe slot (PCIe Gen4x4), supports NVMe SSD |
| Expansion Bus | |
| PCI/ PCI Express | Provides 1 PCIe x16 slot @Gen3, 8-lanes PCIe signal through expansion box (Wukong-9002E/9006E) |
| Provides 2 PCIe x16 slots @Gen3, 8-lanes PCIe signal through expansion box (Wukong-9002DE/9006DE) | |
| 1 PCI slot provided by expansion box (Wukong-9002P/9006P) | |
| Mini PCI Express | 1 full-length mini PCIe slot |
| M.2 | M.2 2242/3052 B key slot, providing a SIM card slot for installing an M.2 5G/4G module |
| Expandable I/O | 1 MezIO™ expansion port, can be connected to Neousys MezIO™ modules |
| power supply | |
| DC input | 1 3-core pluggable terminal block, providing 8~48V DC input |
| 1 3-core pluggable terminal block, providing 24V DC input (only for UL series) | |
| Remote control and LED output | 1 3-pin pluggable terminal block, providing remote control and PWR LED output |
| Mechanical specifications | |
| size | 240mm (W) x 225mm (D) x 90mm (H) (Wukong-9000E/P series) |
| 240mm (W) x 225mm (D) x 110.5mm (H) (Wukong-9000DE series) | |
| 240mm (W) x 225mm (D) x 79mm (H) (Wukong-9000LP series) | |
| weight | 3.58 kg (Wukong-9000E/P series)/3.89 kg (Wukong-9000DE series) |
| 3.36 kg (Wukong-9000LP series) | |
| Installation | Wall mounting (standard) or DIN-rail mounting (optional) |
| Environmental indicators | |
| Operating temperature | Using 35W CPU |
| -25℃ ~ 70℃[3] | |
| Using 65W CPU | |
| -25℃ ~ 70℃[3]/[4] (configured at 35W TDP) | |
| -25℃ ~ 50℃[3]/[4] (configured at 65W TDP) | |
| Storage temperature | -40°C ~ 85°C |
| humidity | 10%~90%, no condensation |
| vibration | Operating conditions, MIL-STD-810H, Method 514.8, Category 4 |
| Shock | Operational status, MIL-STD-810H, Method 516.8, Procedure I |
| EMC | CE/FCC Class A, refer to EN 55032 & EN 55035 |
| Safety | UL 62368-1, IEC62368-1 (UL series only) |
Wukong-9002P
Intel® 13th/12th Gen Core™ rugged embedded computing platform, providing 2 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, single PCIe expansion slot and MezIO™ interface
Wukong-9006E
Intel® 13th/12th Gen Core™ rugged embedded computing platform, providing 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, single PCIe expansion slot and MezIO™ interface
Wukong-9006P
Intel® 13th/12th Gen Core™ rugged embedded computer, providing 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, single PCIe expansion slot and MezIO™ interface
Wukong-9002E-UL
Intel® 13th/12th Gen Core™ rugged embedded computer, providing 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, single PCIe expansion slot and MezIO™ interface 12th Gen Core™ Rugged Embedded Computing Platform with 2 2.5G/Gigabit Ethernet Ports, USB 3.2 Type-C Port, Single-Slot PCIe Box and MezIO™ Interface and UL Certification
Wukong-9002P-UL
Intel® 13th Gen/12th Gen Core™ Rugged Embedded Computing Platform with 2 2.5G/Gigabit Ethernet Ports, USB 3.2 Type-C Port, Single PCIe Expansion Slot and MezIO™ Interface and UL Certification
Wukong-9006E-UL
Intel® 13th Gen/12th Gen Core™ Rugged Embedded Computer with 6 2.5G/Gigabit Ethernet Ports, USB 3.2 Type-C Port, Single-Slot PCIe Box and MezIO™ Interface and UL Certification
Wukong-9006P-UL
Intel® 13th/12th Gen Core™ Rugged Embedded Computer with 6 2.5G/Gigabit Ethernet Ports, USB 3.2 Type-C Port, Single-Slot PCIe Box and MezIO™ Interface and UL Certification
13th Gen Core™ rugged embedded computing platform, providing 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, single PCIe expansion slot and MezIO™ interface and UL certification
Wukong-9002DE
13th Gen Intel® Core™ rugged embedded computing platform, providing 2 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, dual-slot PCIe card cassette and MezIO™ interface
Wukong-9006DE
13th Gen Intel® Core™ rugged embedded computing platform, providing 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, dual-slot PCIe card cassette and MezIO™ interface
Wukong-9002DE-UL
13th Gen Intel® Core™ Rugged embedded computing platform with 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C, dual-slot PCIe cassette and MezIO™ interface and UL certification
Wukong-9006DE-UL
Intel® 13th/12th Gen Core™ Rugged Embedded Computing Platform with 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C, dual-slot PCIe cassette and MezIO™ interface and UL certification
Wukong-9002LP-UL
Intel® 13th/12th Gen Core™ Rugged Embedded Computing Platform with 2 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C, MezIO™ interface and 2.5-inch hard drive tray
Wukong-9006LP-UL
Intel® 13th/12th Gen Core™ Rugged embedded computing platform with 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, MezIO™ interface and 2.5-inch hard disk tray
Wukong-9002LP-UL
Intel® 13th/12th Gen Core™ Rugged Embedded Computing Platform with 2 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, MezIO™ interface and 2.5-inch hard disk tray and UL certification
Wukong-9006LP-UL
Intel® 13th/12th Gen Core™ Rugged Embedded Computing Platform with 6 2.5G/Gigabit Ethernet ports, USB 3.2 Type-C port, MezIO™ interface and 2.5-inch hard disk tray and UL certification
PoE+ optional
2.5G Ethernet ports 3~6 can be equipped with 802.3at PoE+ PSE
Manual
| Date | Description | Version | Download File |
|---|---|---|---|
