G40 Series
- Intel® Elkhart Lake Atom® x6211E dual-core processor
- 49 x 89 x 112mm compact chassis design
- Rugged industrial computer, fanless operation in a wide temperature range of -25°C to 70°C
- 2 Gigabit Ethernet ports, 2 USB 3.1 Gen1 ports and 2 USB 2.0 ports
- M.2 2280 M key SATA storage interface
- 1 M.2 B Key slot, supports 5G/ 4G 3042/ 3052 modules
- 1 M.2 E Key slot, can connect WiFi 5/ WiFi 6 module
- 1 RS-232/ 422/ 485 serial port module and 3 RS-232 serial ports

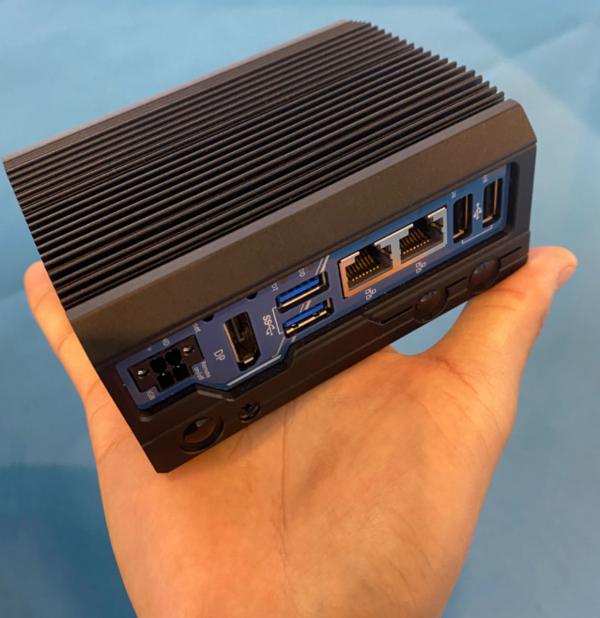

G40 is a wide temperature range fanless industrial computer, using Intel® Elkhart Lake Atom® x6413E 1.5GHz/3.0GHz 9W and x6211E dual-core 1.3GHz/3.0GHz 6W low-power embedded processors, with long life cycle and better performance than J1900 processor. Built-in M.2 and Mini-PCIe expansion slots support expansion of WiFi 5/WiFi 6 and 4G/5G modules. G40 has a compact design and rail mounting, which is very suitable for energy pipeline monitoring and factory industrial IoT acquisition applications in harsh environments. Its rugged quality can effectively reduce maintenance costs.
| CPU | G40+ uses Intel® Elkhart Lake Atom® x6413E quad 1.5GHz/ 3.0GHz 9W processor; G40 uses Intel® Elkhart Lake Atom® x6211E dual-core 1.3GHz/ 3.0GHz 6W processor |
| GPU Name | Integrated Intel® UHD Graphics Controller |
| Memory | 1 x SO-DIMM slot, supports up to 32 GB DDR4-3200 SDRAM |
| TPM | Support fTPM 2.0 |

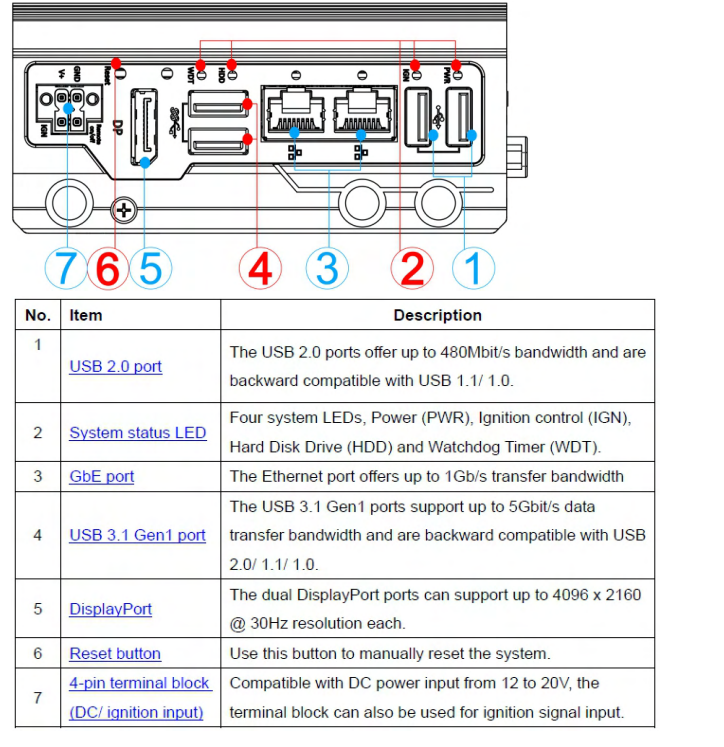

| Ethernet | 2 x Gigabit Ethernet ports using Intel® I210 GbE controller |
| USB | 2 x USB 3.1 Gen1 (5 Gbps) ports |
| 2 x USB 2.0 ports | |
| Display | 1 x DisplayPort interface, supporting a maximum resolution of 4096 x 2160 @ 60Hz |

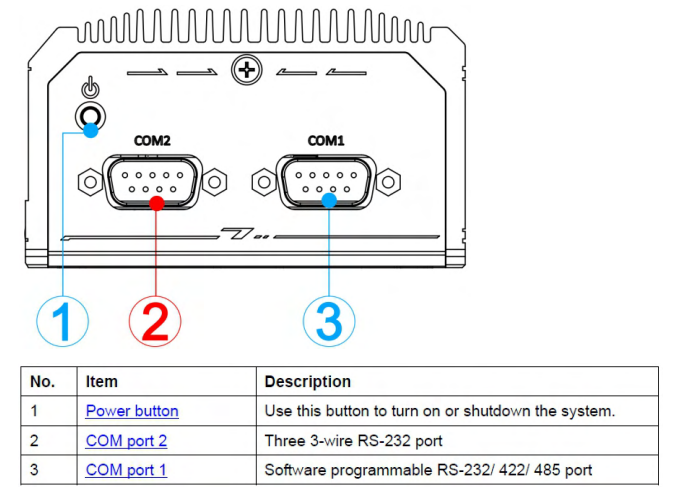

| COM | 1 x RS-232/422/485 serial port (COM1), configurable by BIOS |
| 3 x RS232 serial ports (COM2/ COM3/ COM4) | |
| 1 x isolated RS-422/485 serial port (COM2) | |
| Isolated Digital I/O | Optional 4-channel isolated digital input and 4-channel isolated digital output |
| Storage | 1 x M.2 2280 M Key SATA interface |
| Expansion | G40 has one M.2 3042/3052 B Key slot, which can be connected to a 4G/5G module through the internal SIM card slot; G40+ has no |
| 1 x M.2 2230 E Key slot, can connect WiFi 5/WiFi 6 module | |
| G40+ has 1 full-size Mini-PCIe slot with internal SIM slot; G40 has no | |
| Power | 1 x 4-pin plug-in terminal module provides 12~20V DC input, with optional ignition signal power control function; 1 4-pin plug-in terminal module for remote control |
| Dimensions | 52mm (W) x 89mm (D) x 112mm (H) |
| Weight | 0.6kg |
| Mounting | Wall mount kit DIN-rail kit VESA mount kit |
| Operating Temperature | G40+为-25°C ~ 60°C；G40为-25°C ~ 70°C |
| Storage temperature | -40°C ~85°C |
| Relative Humidity | 10% to 95%, non-condensing |
| Vibration | Operational, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating conditions, STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/ FCC Class A, refer to EN 55032 and EN 55035 |
| G40 | Intel® Elkhart Lake Atom® x6211E compact embedded industrial computer with 2 Gigabit Ethernet ports and 2 USB 3.1 |
| G40-DIO | Intel® Elkhart Lake Atom® x6211E compact embedded industrial computer, supports 2 Gigabit Ethernet ports and 2 USB 3.1, provides 8-channel isolated DIO |
| G40-IGN | Intel® Elkhart Lake Atom® x6211E compact embedded industrial computer, supporting 2 Gigabit Ethernet ports and 2 USB 3.1, equipped with ignition signal power control |
| G40+ | Intel® Elkhart Lake x6413E Compact IoT Gateway Computer with 2x GbE, 2x USB 3.1, 1x Isolated RS422/485, and 8x Isolated DIO |
